Special solutions

As a specialist for hydraulic components, not only do we offer a wide range of standard products, but we also develop precise solutions for complex and individual hydraulic tasks in dialogue with our customers: fast, efficient and economical.

> Fan drives KM 1
> Oscillation cylinder

fan drives KM 1

Individual cooling through adaptable motors with different valve functions for each cooler brand

CHARACTERISTICS

Flow range
4 … 60 l/min
1.06 … 15.85 gal/min
Max. temperature
80 °C / 176 °F
Constant pressure
… 250 bar / … 3 626 psi

Data sheet

Media Centre

See hydraulics brochure (button above)
or data sheet KM 1 fan drives (button below)

Media Centre

contact

Sales

KM 1 “Space-optimised” proportional valve and reversible unit

KM 1 “Standard” proportional valve and reversible unit

KM 1 “Space-optimised” proportional valve

KM 1 “Standard” proportional valve

KM 1 “Standard” proportional valve and suction valve

KM 1 Thermostatic valve, pressure relief valve and suction valve

KM 1 Thermostatic valve, pressure relief valve with reversible unit and suction valve

KM 1 Pressure relief valve and suction valve

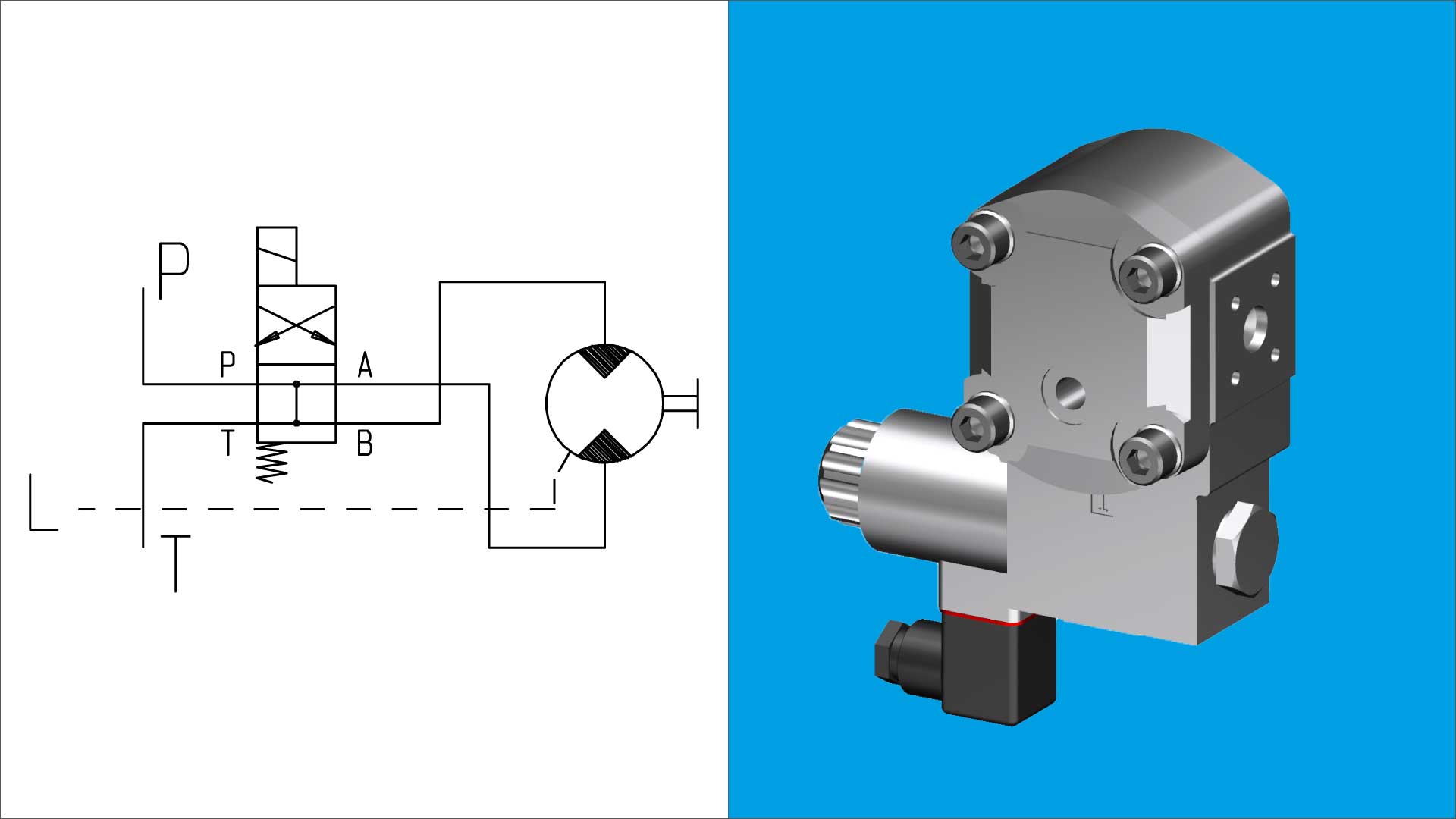

KM 1 ON-OFF function

KM 1 Pressure relief valve, reversible unit and suction valve

OSCILLATION CYLINDER

The OZ-cylinder (oscillating cylinder) is a self-switching operating cylinder with automatic directional control that is independent of the pressure. It is a differential cylinder with a pump connection on the cylinder head and a tank connection on the piston rod. The combination of work equipment and hydraulic control minimises the parts, saves pipework expenses and facilitates a reduction of the construction volume and therefore the costs.

> Simple construction (automatic reversal is integrated in the cylinder piston)
> Compact design
> No changeover pressure setting required
> Soft reversal
> Differential cylinder in rapid traverse function
> Automatic direction reversal
