Screw type flow meters SVC
HIGHLY PRECISE AND ROBUST
Our screw type flow meters incorporate the product characteristics robustness, high-precision measuring accuracy, good handling as well as durability and economy. Further advantages are resistance and insensitivity to contamination, pulsation free and low pressure drop.
SCREW TYPE FLOW METERS SVC
Particularly suitable for highly viscous media with abrasive fillers.
CHARACTERISTICS
Measuring range
0.4 … 3 750 l/min
0.11 … 991 gal/min
Media temperature
-40 … 210 °C / -40 … 410 °F
Maximum pressure
480 bar / 6 962 psi
APPLICATIONS
> Dosing systems
> Process technology
> Test bench construction
PRODUCT CHARACTERISTICS
> Pulsation-free measuring principle
> Very low pressure drop
> Any flow direction
> Wide temperature range
> High working pressure
> High-response measurement
> Very low noise emission
> Electronics in EMC compliant design
> RoHS compliant
Options
Data sheets
contact

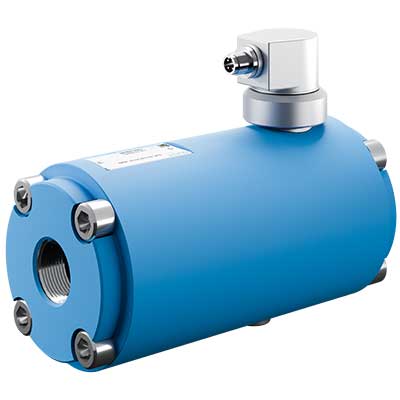

SCREW TYPE FLOW METERS SVC WITH ENCODER
With maximised measured value resolution for high-precision measurements in process and test bench technology.
CHARACTERISTICS
1.0 … 150 l/min
0.26 … 40 gal/min
Media temperature
-20 … 80 °C / 4 … 176 °F
Maximum pressure
250 bar / 3 626 psi
APPLICATIONS
> Test bench construction
PRODUCT CHARACTERISTICS
> Maximised measurement resolution up to resp. 247 463 Imp/l resp. 936 749 Imp/gal
Data sheets
contact
SCREW TYPE FLOW METERS SVC WITH IO-LINK TECHNOLOGY
Signal conversion with internal calculation of measured values.
CHARACTERISTICS
Measuring range
0.4 … 3 750 l/min
0.11 … 991 gal/min
Media temperature
-30 … 80 °C / -22 … 176 °F
Maximum pressure
480 bar / 6 962 psi
APPLICATIONS
> Test bench construction
PRODUCT CHARACTERISTICS
> Output of square-wave signals in SIO mode
> Output of specific measured values in IO-Link mode
> Simplified commissioning through IODD file (IO Device Description)
IODD Download
Data sheets
contact
SCREW TYPE FLOW METERS SVC WITH analog TECHNOLOGY
CHARACTERISTICS
Measuring range
0.4 … 3 750 l/min
0.11 … 991 gal/min
Media temperature
-30 … 80 °C / -22 … 176 °F
Maximum pressure
480 bar / 6 962 psi
APPLICATIONS
> Test bench construction
PRODUCT CHARACTERISTICS
> Basic device identical to standard SVC
> Analog output signal for flow rate determination
> Additional digital signal for flow direction determination
> Individualisation of the measuring range possible
> Universal application possibilities
> 16 bit resolution
> Cable break detection
> Display of flow rate and direction by proportional LED behaviour on the device
