Pressure stage control valves

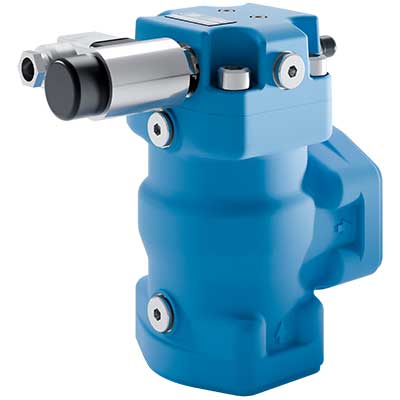

The DV S pressure stage control valve is a pilot-control pressure relief valve with several parallel pilot valves set at two different pressures. The pressure stage switch valve has an integrated directional control valve. This valve is used to switch different pressure stages (upstream pressure) on and off. The control oil drain is internal or external.
A typical application is clutch control in ship gearboxes.
DV S
CHARACTERISTICS
Volume flow
800 … 1 800 l/min
211 … 477 gal/min
Temperature range
-15 … 150 °C / 5 … 302 °F
Nominal pressure
… 210 bar / … 3 046 psi
