Single radial lip-type seal
Example:
for general fluid pumping

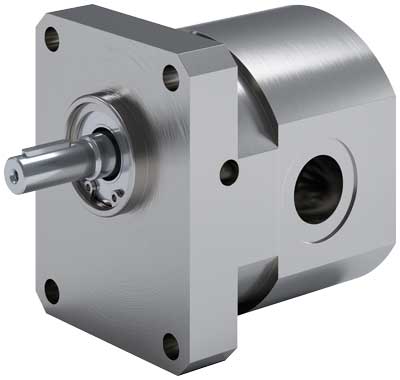

Process pumps KF 0
The dosing of liquids is at the centre of the task in numerous process engineering processes. The accuracy, uniformity and reproducibility with which these liquids can be processed are decisive for the quality of the end product. The gear pump KF size 0 is particularly suitable for these applications. In conjunction with a VC flow meter and the evaluation electronics, the KF 0 can be expanded into a high-precision dosing unit.
CHARACTERISTICS
Displacement
0.5 … 4.0 cm³/rev
Media temperature
-30 … 200 °C / -22 … 392 °F
Maximum pressure
120 bar / 1 740 psi
APPLICATIONS
> Dosing of fluids such as PUR components, plasticisers, resins, adhesives, paints and varnishes.
Shaft seals
options
> Stainless steel version
